N150 Mini PC (Upgraded N100) Firewall with 4 Port 10GbE RJ45 + 2.5GbE LAN, S7 Pro OPNsense Appliance Mini Computer, Barebone Micro PC DDR5 NO RAM/SSD/OS, Dual NVMe, USB-C, TF

• 2025 New Gen. N150 Processer: The CWWK S7 Pro Mini PC features the new model Twin Lake N150 CPU (upgrade of the Alder Lake N100), 4C/4T, up to 3.6GHz, 6MB cache. With an ultra-low TDP of just 6W, it’s perfect for energy-efficient systems. Supporting Auto Power-On, Scheduled Power-On, Wake-on-LAN, PXE Boot, Secure Boot, CPU Temperature Monitoring. UEFI only

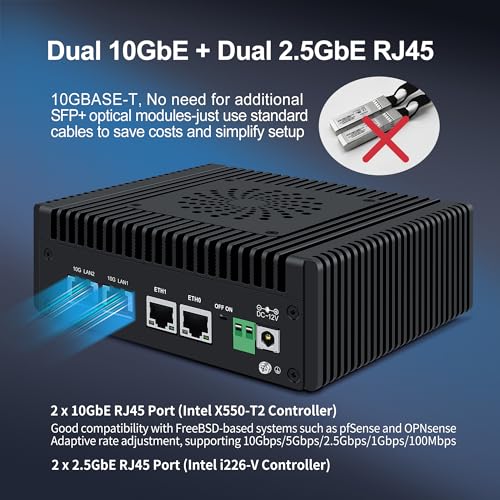

• Dual 10GbE + Dual 2.5GbE RJ45: Equipped with 2 × 10Gbit RJ45 ports (X550-T2 controller, supporting FreeBSD-based systems, Linux, ESXi), compatible with 10G/5G/2.5G/1G/100Mbps and usable directly with Cat6a/Cat7 cables (10GBase-T) without additional SFP+ modules, plus 2 × 2.5Gbit RJ45 ports (i226-V), delivering 4 Ethernet ports for software routers, firewalls, data servers, or virtualization AIO

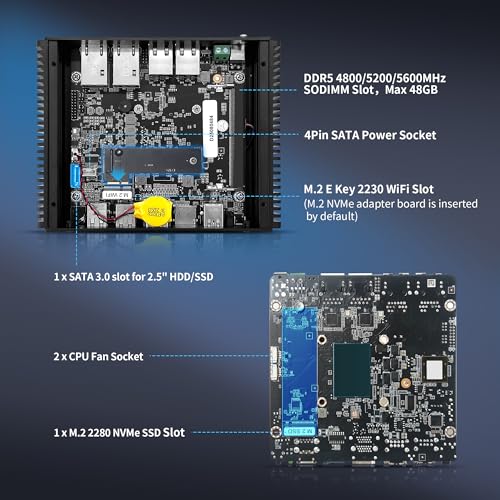

• DDR5 Memory and 2 × NVMe: 1 × SO-DIMM 4800MHz DDR5 slot, up to 48GB. 2 × M.2 2280 NVMe slots (PCIe 3.0 x1); the rear slot is native, while the front NVMe slot is adapted from an M.2 E-key, only supporting up to 2TB. Removing the adapter allows the E-key to install a WiFi7/BT5.4 module. 1 × SATA3.0 slot for HDD/SSD. Supports AES-NI, Auto Power On, Wake on LAN, PXE boot

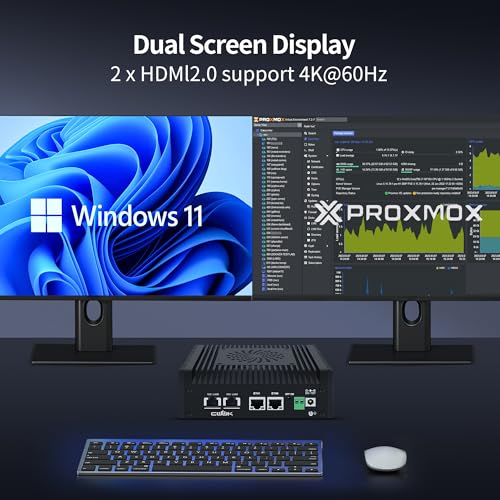

• Varied External I/O Ports: Integrated UHD Graphics (1GHz, 24EUs) with 2 × HD2.0 ports, supporting dual 4K@60Hz displays. 1 × USB 3.1 Gen1 (5Gbps), 1 × USB Type-C (USB2.0), 4 × USB 2.0 ports, 1 × MicroSD slot for system boot, CLR_CMOS button for BIOS reset/discharge, Auto Power-On jumper for quick auto-on control, and 2-pin Phoenix connector for backup or redundant DC power
• Supports Passive and Active Cooling: Features an all-metal case with passive cooling and dual heat pipes closely connected to the CPU and network chip, plus a smart fan that can stop at low load. The fan is isolated from the motherboard to prevent dust and moisture. Includes power adapter and common cables; only an electronic user manual is provided

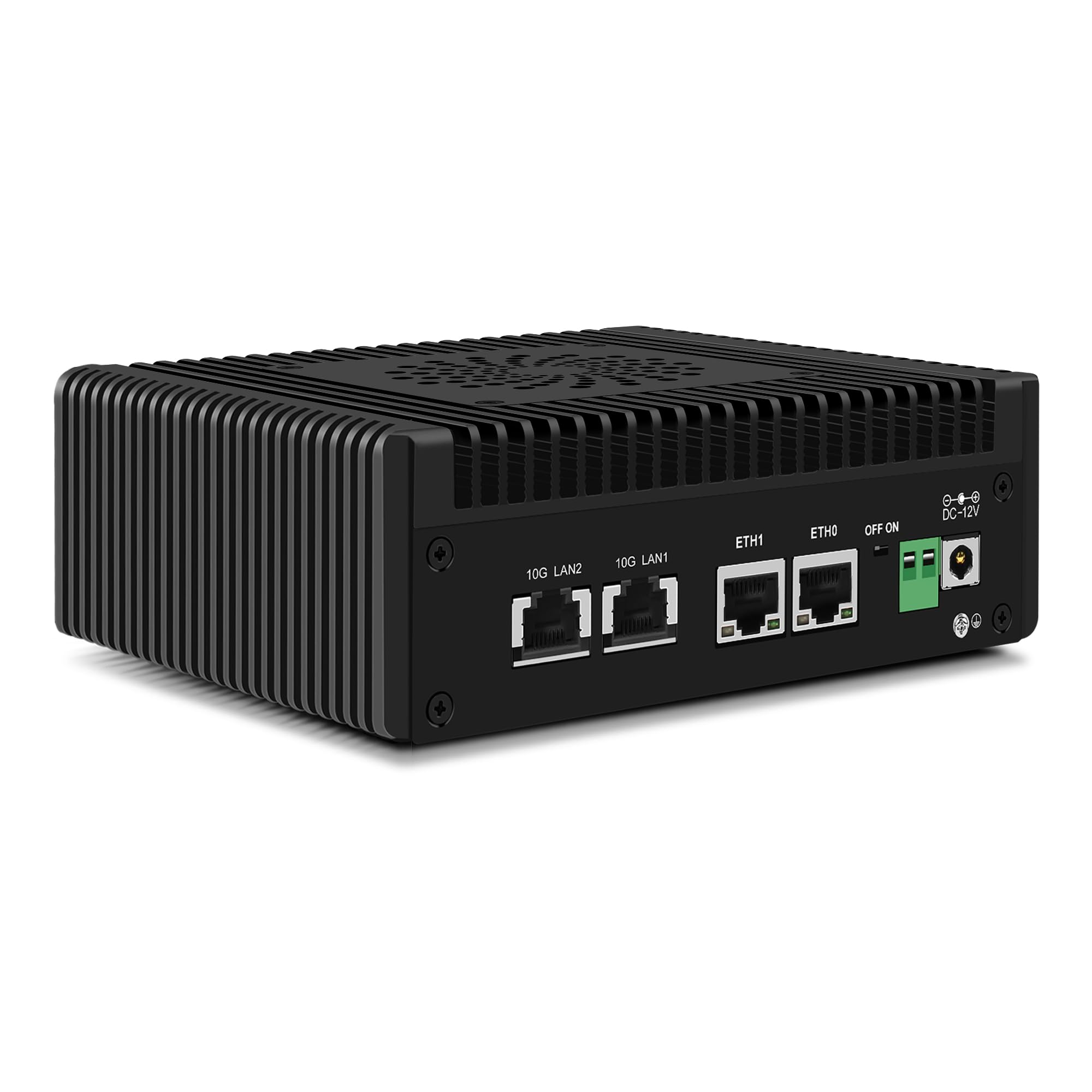

CWWK S7 Pro Dual 10GbE RJ45 Dual 2.5GbE RJ45 Network Port Mini Firewall Box

CPU Options: Twin Lake N150 / Core 3 N355

Memory: 1 x SO-DIMM DDR5 RAM slot, up to 48GB (max 4800MHz, compatible with 5200MHz / 5600MHz)

Storage: 2 x M.2 2280 NVMe SSD slots (PCIe3.0 x1), 1 x SATA 3.0 slot, 1 x TF card slot

Ethernet Ports: Dual X550-T2 10GbE RJ45 LAN, 2 x i226-V 2.5GbE RJ45 LAN

Wireless Module: When removing the M.2 NVMe adapter, it allows the M.2 E-key to install a WiFi/BT module

Display Ports: 2 x HD2.0 port, supports up to 4K@60Hz

USB Ports: 1 x USB 3.2 Gen1 5Gbps, 1 x USB-C (USB2.0 signal), 4 x USB 2.0

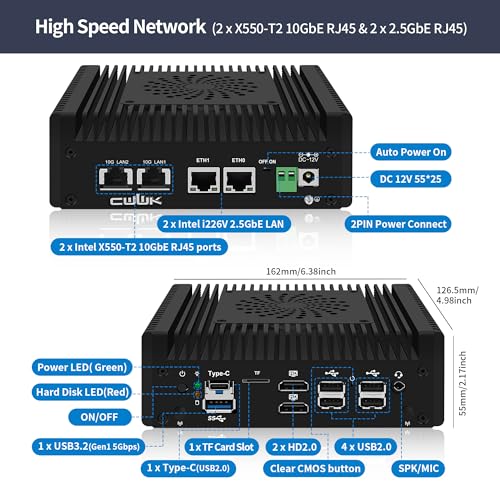

Other Ports: CLR_CMOS button, Auto Power-On jumper, 2-pin Phoenix connector, 1 x audio port, 2 x Wi-Fi antenna connectors

Case: Full aluminum alloy case

Cooling Type: Passive + Active Cooling

Power Supply: DC 12V (55*25)

Size: 16.2 x 12.7 x 5.7 cm / 6.38 × 5.0 × 2.24 inches

Weight: 1.2 kg / 2.65 lb

Package Contents: CWWK S7 Pro 10GbE Firewall Mini PC, Power Adapter, SATA adapter cable, Fan adapter cable

Features: Supports AES-NI, Auto Power On, Wake-on-LAN, PXE boot, Power Management, CPU Fan Management

Operating System: Supports soft router system, FreeBSD-based systems, OpenBSD, Win OS, Linux, PVE, ESXi
