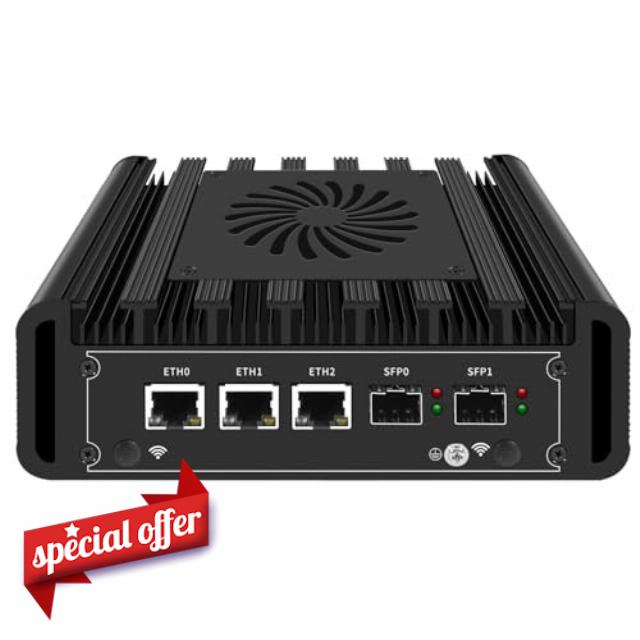

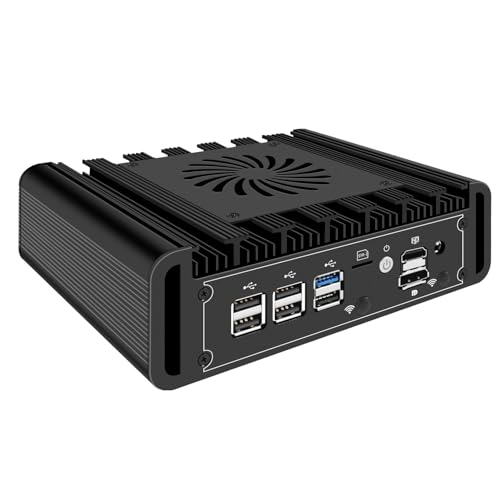

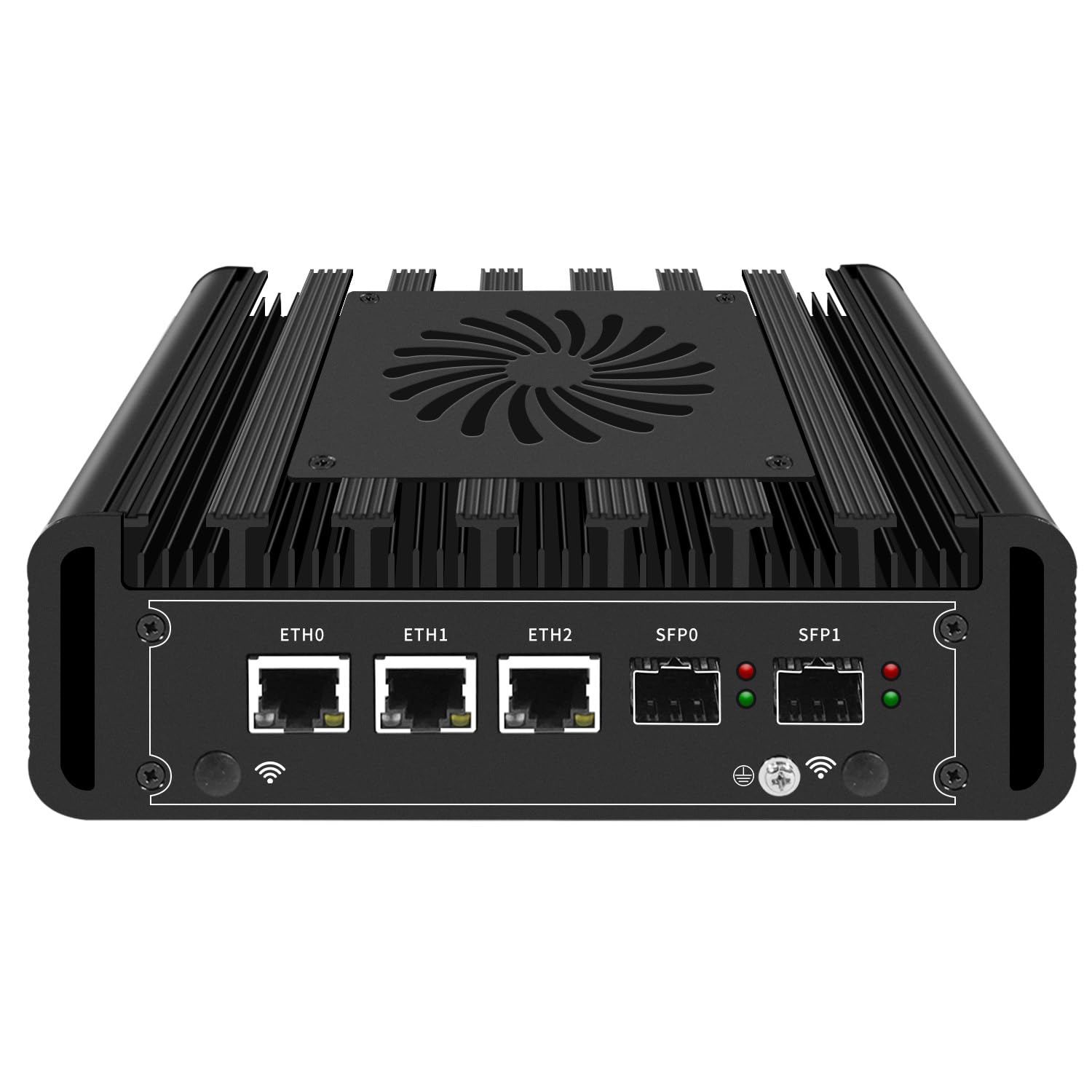

Micro Firewall Mini PC N305, 8 Cores Low-power Processor, 2 x 10G SFP, 3 x 2.5GbE i226-V LAN, 8GB DDR5 128GB SSD, Built-in Fa

• InteI 12th genertation low-power processor N305, 8 Cores up to 3.8GHz. Support uEFI BIOS, AES-NI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN
• 2 x InteI 82599ES 10G SPF+ ports, 3 x InteI i226-V 2.5GbE LANs, 1 x USB3.2 Gen1, 5 x USB2.0, 1 x HDMI2.0, 1 x DP1.4, 1 x SIM slot
• 1 x DDR5 SO-DIMM Non-ECC RAM slot, compatible with 4800MHz, support up to 32GB. 1 x M.2 2280 NVMe/PCIE3.0*1 SSD, 1 x M.2 E-key 2230 slot (support CNVio WiFi module, such as InteI AX201/211), 1 x M.2 B-key 3052 slot (support 5G moudle)
• Compitable with mainstream open source solutions: Win OS, Linux, Ubuntu, pf-Sense, OPNsense, OpenWRT

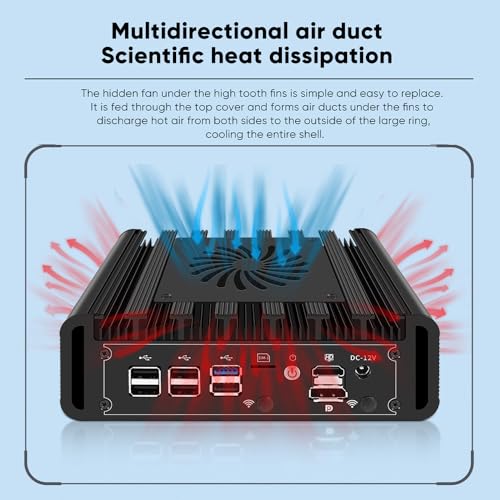

• Equipped with an integrated fan and high tooth heat sink fins, delivers superior thermal performance, thereby improving processor performance to effortlessly handle more tasks

CPU: InteI Core i3-N305, 8 Cores, up to 3.80 GHz, 6MB Cache, TDP 15W

GPU: InteI UHD Graphics

Memory: 1 x SO-DIMM DDR5 Non-ECC RAM slot, compatible with 4800MHz, support up to 32GB

Storage: 1 x M.2 2280 NVMe/PCIe3.0*1 SSD slot

Network: 2 x InteI 82599ES 10G SFP ports, 3 x InteI i226-V 2.5GbE LANs

Wireless: 1 x SIM slot, 1 x M.2 E-key 2230 slot (support CNVio WiFi module, such as InteI AX201/211), 1 x M.2 B-key 3052 slot (support 5G moudle)

USB: 1 x USB3.2 Gen1, 5 x USB2.0

Display: 1 x HDMI2.0, 1 x DP1.4

Power: DC 12V

Cooling System: Built-in 8010 Fan

Dimension: 177 x 125 x 54 mm

Chassis Material: Aluminium alloy

Compatibility:

– Boot mode: only suppot UEFI

– InteI i226-V is a new network card, suggest to install newest version of following systems with supportable kernel: pf-Sense CE 2.7, pf-Sense Plus, OPNsense 23.x, OpenWrt, ESXi, Proxmox 8.x, CentOS

– Untangle is not supported
