300M IP HDMI KVM Extende,HDMI Extender over IP

300M IP HDMI KVM Extende

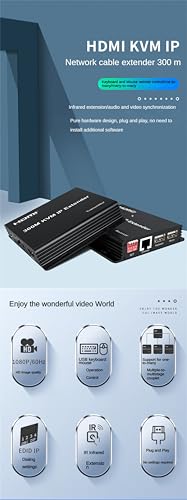

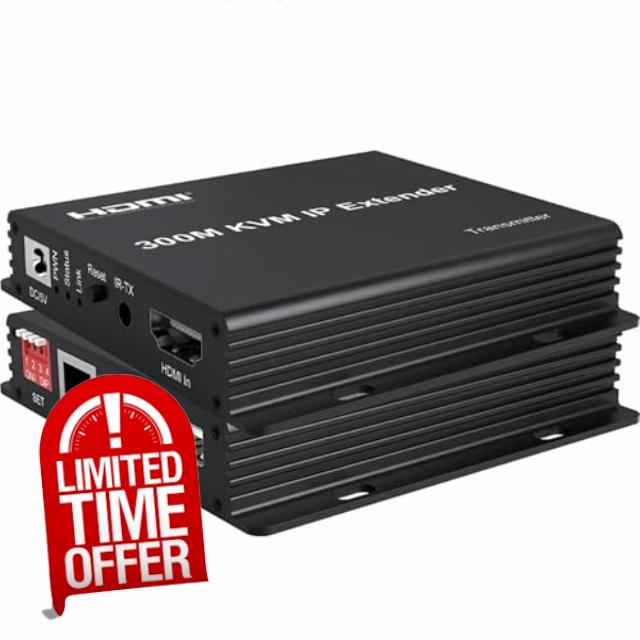

300M IP HDMI KVM Extende,HDMI Extender over IP Rj45 Cat6 Ethernet Cable 1080P HDMI KVM Extender Muitlpoint Connect Network Switch Support Mouse Keyboard for PC DVR TV (KVM IP Extender)

  • A: 300M Extender: 300M long distance transmission, supports one-to-one, one-to-many, many-to-many and cascade transmission
  • B:MJPEG decoding: stable performance, standard 802.3 Ethernet protocol. HD transmission 1920 * 1080 / 60Hz resolution image output more delicate colour, picture quality lifelike.
  • C: Multi-system compatibility: compatible with windows series, Mac OS, Linux and other systems without the need to install drivers plug and play.Scene application: suitable for home sharing, TV sales, advertising display, multimedia teaching and other scenes.
  • D: Safety protection and high efficiency: anti-static technology to prevent damage to electronic components caused by static electricity. Anti-surge technology to enhance product stability and prevent surge impact. 1080P/60Hz ,enjoy HD visual experience of the delicate world. Pure hardware devices, multiple splicing modes, plug and play.
  • E:Here are 2 models : " IP Extender " and " KVM IP Extender ";" KVM IP Extender" with USB Port , RX can connect mouse and keyboard, and with IR Cable;"IP Extender" without USB Port,cannot use mouse and keyboard and without IR cable.Pls buy it correctly according to your needs.


Attention Pls:
Here are 2 models : ” IP Extender ” and ” KVM IP Extender “
” KVM IP Extender” with USB Port , RX can connect mouse and keyboard, and with IR Cable
“IP Extender” without USB Port,cannot use mouse and keyboard and without IR cable.
Pls buy it correctly according to your needs.
Introduction:
300M HDMI IP Extender is based on TCP/IP standard. It transmits your HD display with the high resolution up to

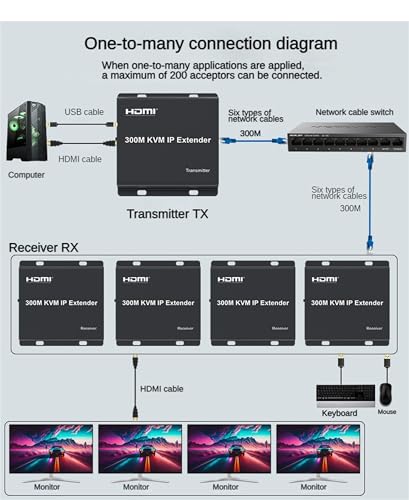

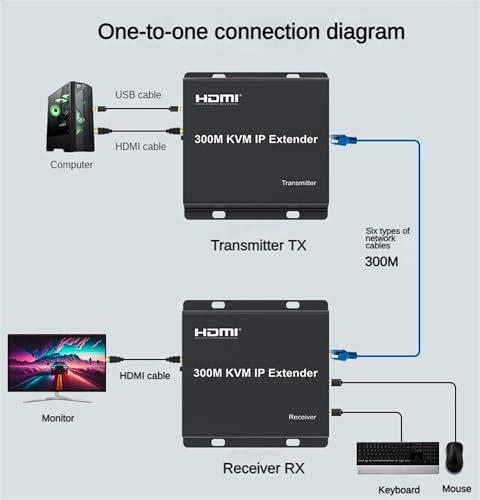

300M away from your DVD or computer source by using one CAT5e/6 cable. At the same time, it’s convenient to transmit HDMI audio and video source by point-to-point mode, point-to-multipoint,multipoint-to-multipoint mode and cascade connection mode .
Features :
Support HDCP1.4
Decoding Mode MJPEG
Support point-to-point mode, point-to-multipoint mode, multipoint-to-multipoint mode and cascade connection mode;
802.3 Ethernet standard;
The design of pure hardware, plug and play, no need for additional software.
CAT-5e/6 follow the standard of IEEE-568B
Specifications:
Resolutions :480P/720P/1080P
Audio:Sample rate:32kHz,44.1kHz and 48kHz
Power adapter format:Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
The max working current:TX 450mA,RX 400mA
Size(L-W-H):90*91*19mm
Weight:120g x 2
Qualified cat5e/6 cables are needed
Pls uses qualified cat5e/6 cables follow the standard of IEEE-568B to pair the TX and RX. A qualified network cable shall be of copper conductor.
The transmission distance is subjects to that of the cables connected.
Package Content For KVM IP Extender :
1 x 300M KVM IP Transmitter
1 x 300M KVM IP Receiver
2 x IR cable
2 x 5V Power supply
1 x USB cable
1 x User guide

SKU: B0D8KCJX2S
Weight: 550 g
Dimensions: 16 x 8 x 3 cm; 550 g
Part: 300M-IP
Colour: KVM IP Extender
Manufacture: Fashion Swallows
Colour: KVM IP Extender
Reference: 300M-IP
