Geekworm X1011 PCIe to 4PCS M.2 Key-M NVMe SSD

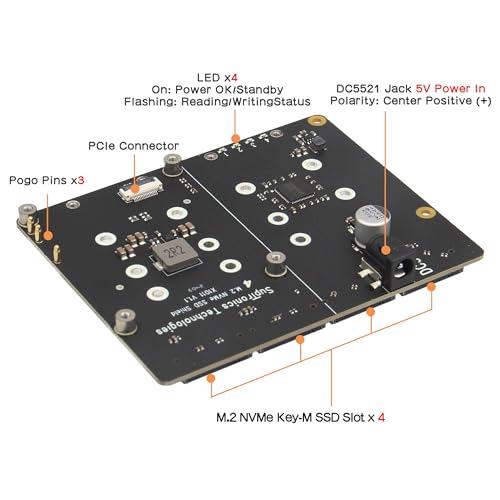

Geekworm X1011 PCIe to 4PCS M.2 Key-M NVMe SSD Peripheral Board for Raspberry Pi 5
- Compatibility: only compatible with Raspberry Pi 5

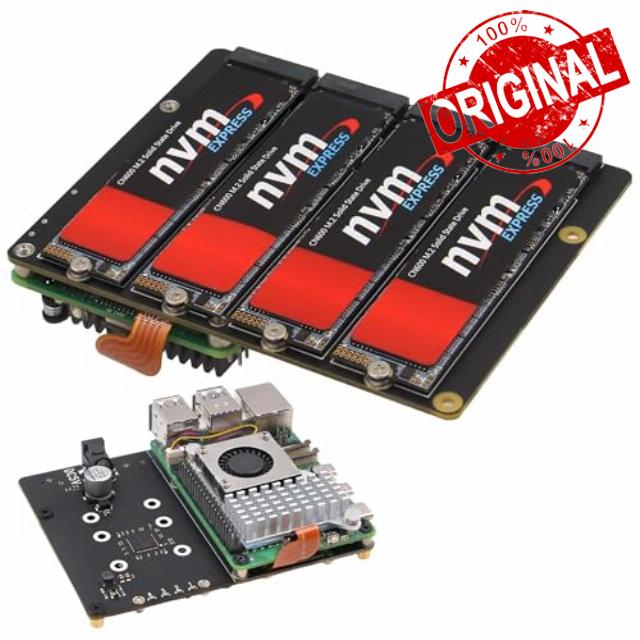

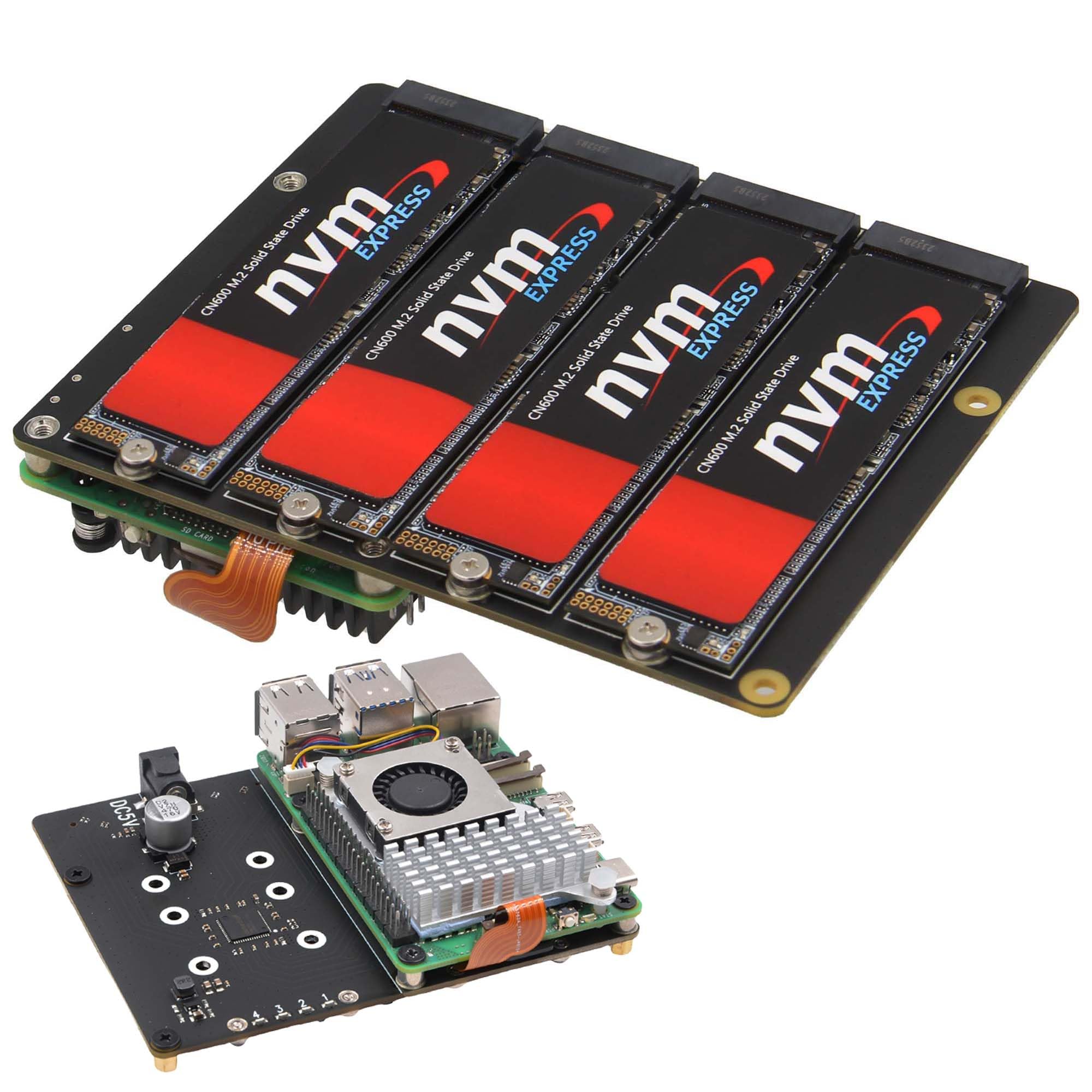

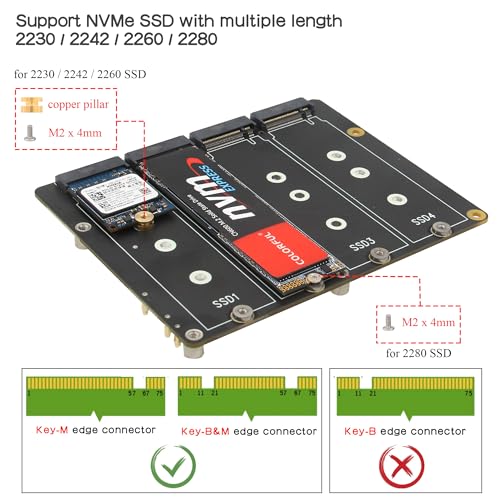

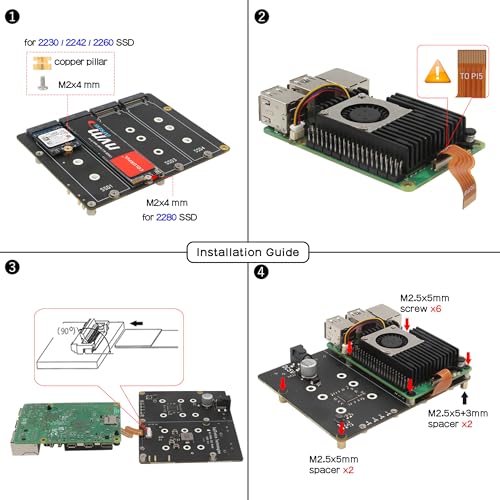

- 【Support 4pcs M2 NVMe SSDs】Support M.2 KEY-M NVMe SSD 2230/2242/2260/2280 length installation. Comes with SSD copper pillar for 2230/2242/2260 SSD installation.
- Support NVMe boot: Support NVMe boot with eeprom 2024/05/17 version and later version.

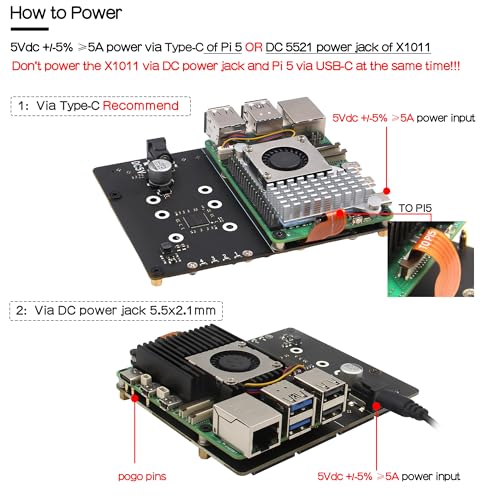

- How to Power: Powering via both pogo pins and FFC or DC power jack, ensuring sufficient power supply. Recommend to use Geekworm PD 27W power adapter (ASIN: B0CZCZF2QV). Don't power the X1011 via DC powe jack and the Raspberry Pi5 via USB-C at the same time. !

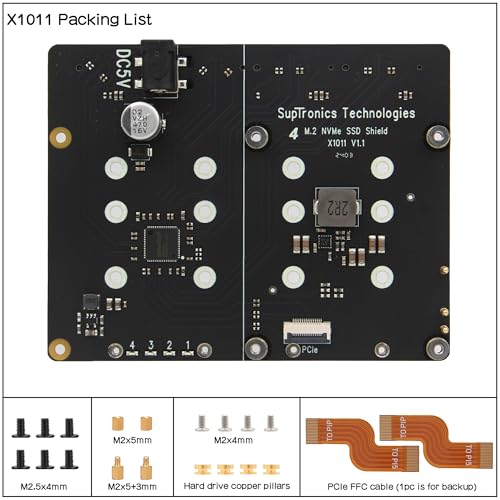

- Packing list: 1 x X1011 PCIe to M2 NVMe shield, 2 x PCIe FFC cable (one as backup), 1 x screws pack
- Important notes: X1011 does not support PCIe 3.0 speed.
| SKU: | B0D6YRHNG5 |
| Weight: | 51 g |
| Dimensions: | 10.8 x 8.6 x 1.6 cm; 51 g |
| Brand: | Geekworm |
| Model: | X1011 |
| Manufacture: | Geekworm |
