Obeaming 12V Light Dimmer Switch PWM Rotary Dimmer
Obeaming 12V Light Dimmer Switch PWM Rotary Dimmer for LED Strip Light, RV Boat Camper Van Trailer Lighting, Works with DC12V / DC24V, Rated 15A@12V (Black)

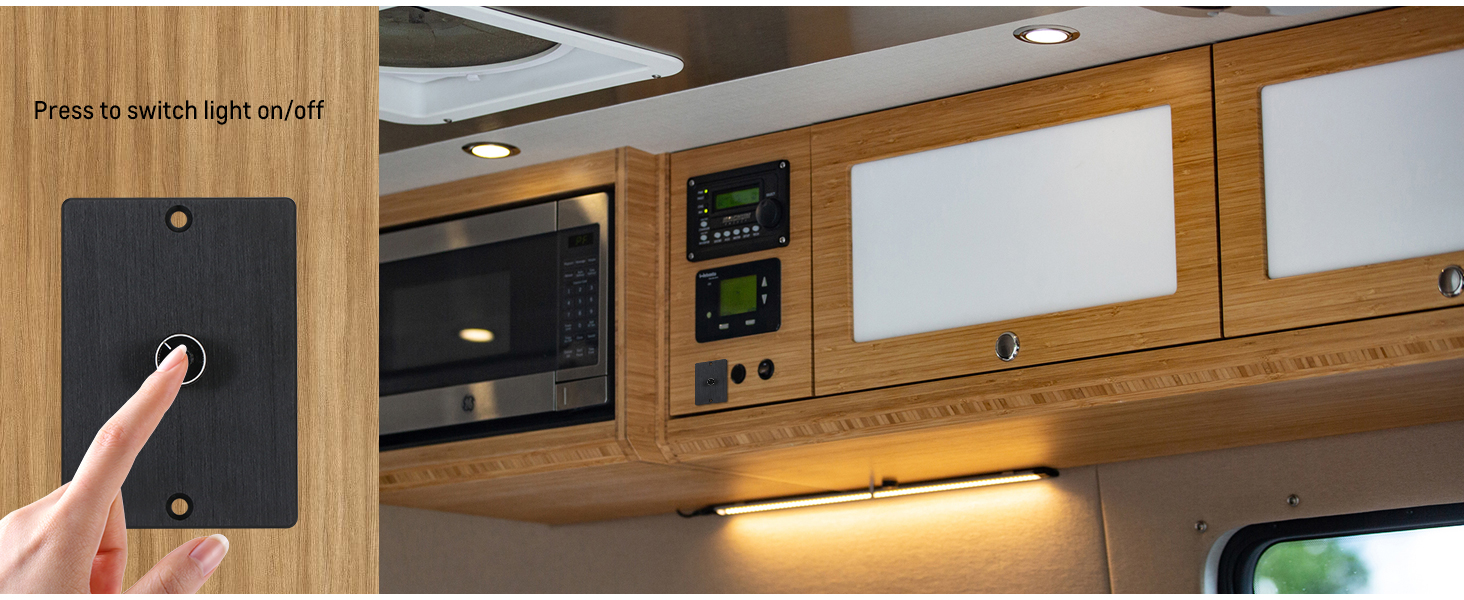

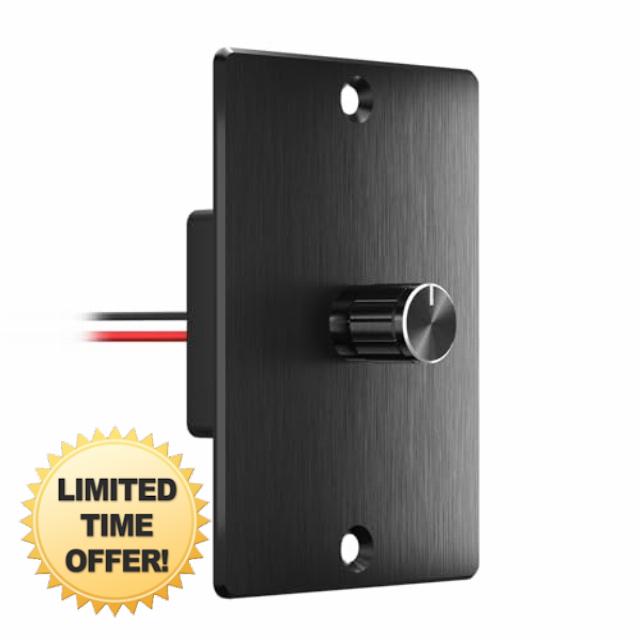

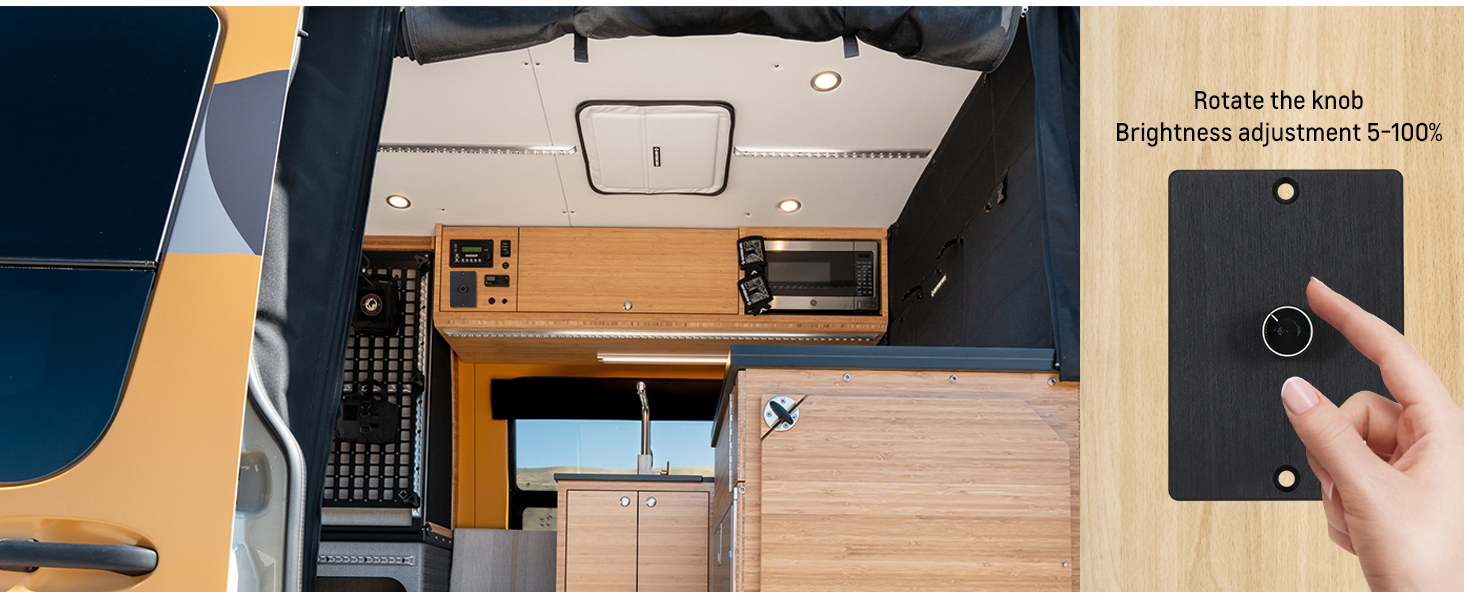

- – High efficiency PWM stepless dimming and memory function, it provides smooth brightness adjustment from 5% to 100%, quiet and flicker-free. Press knob to switch on off, rotate knob to adjust brightness

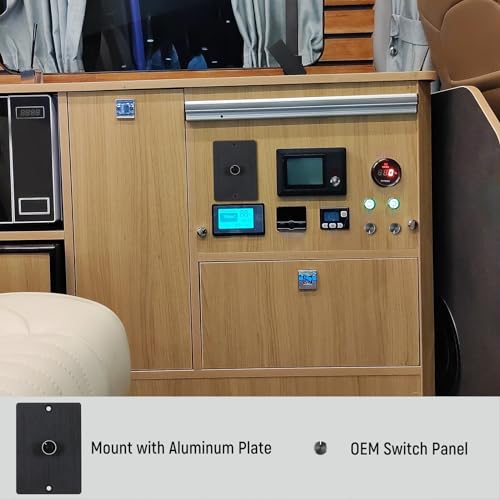

- – Full aluminum decorative faceplate luxury texture finish, 9cm (Length) * 6.4cm (Width), flushes with mounting surface and clean modern look after installation

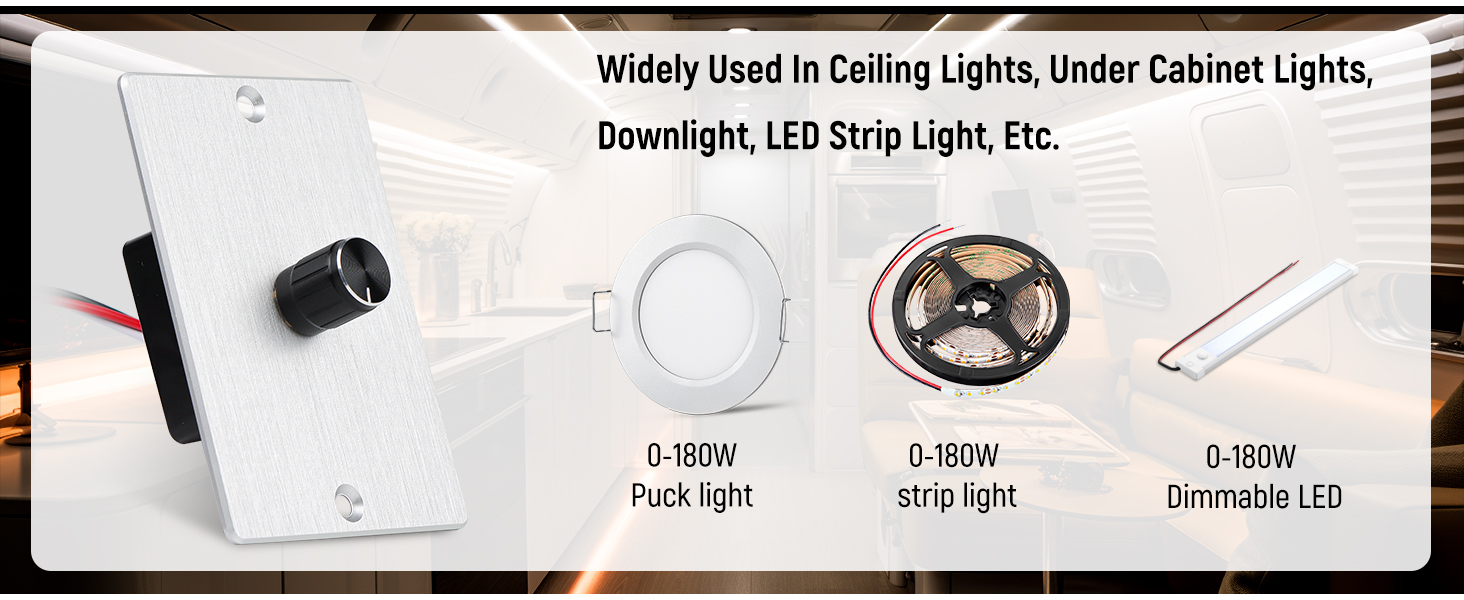

- – Rated Max 15A with electric surge protection design, works with DC12V and DC24V circuit. Dims up to 180 watts (15A@12V, 7A@24V) of incandescent, halogen, dimmable LED lighting

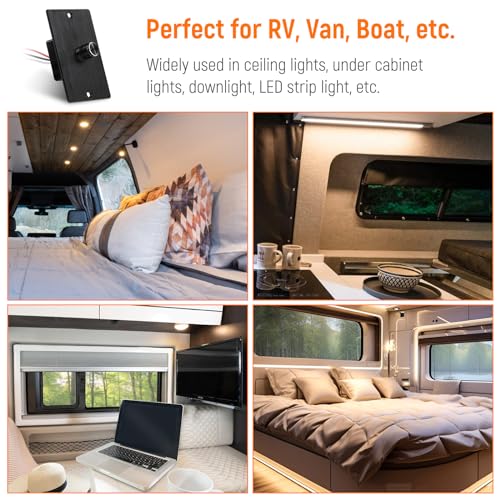

- – Perfect for RVs, trailers, boats, cars, trucks, or any DC12V, DC24V dimmable LED lights, LED strip light or fan speed control (max 3A for fan)
- – Package includes: dimmer with aluminum front plate, 2 screws and quick start instructions. Engineered in California with 2 years warranty
| SKU: | B0CTC63JB6 |
| Weight: | 80 g |
| Dimensions: | 9 x 6.4 x 2 cm; 80 g |
| Model: | OB-12V-DDS-EUE |
| Part: | OB-12V-DDS-EUE |
| Colour: | Black |
| Batteries Required: | No |
| Manufacture: | Obeaming |
| Colour: | Black |
Product Description

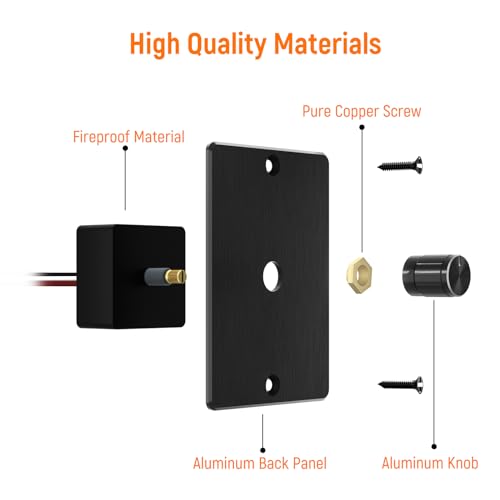

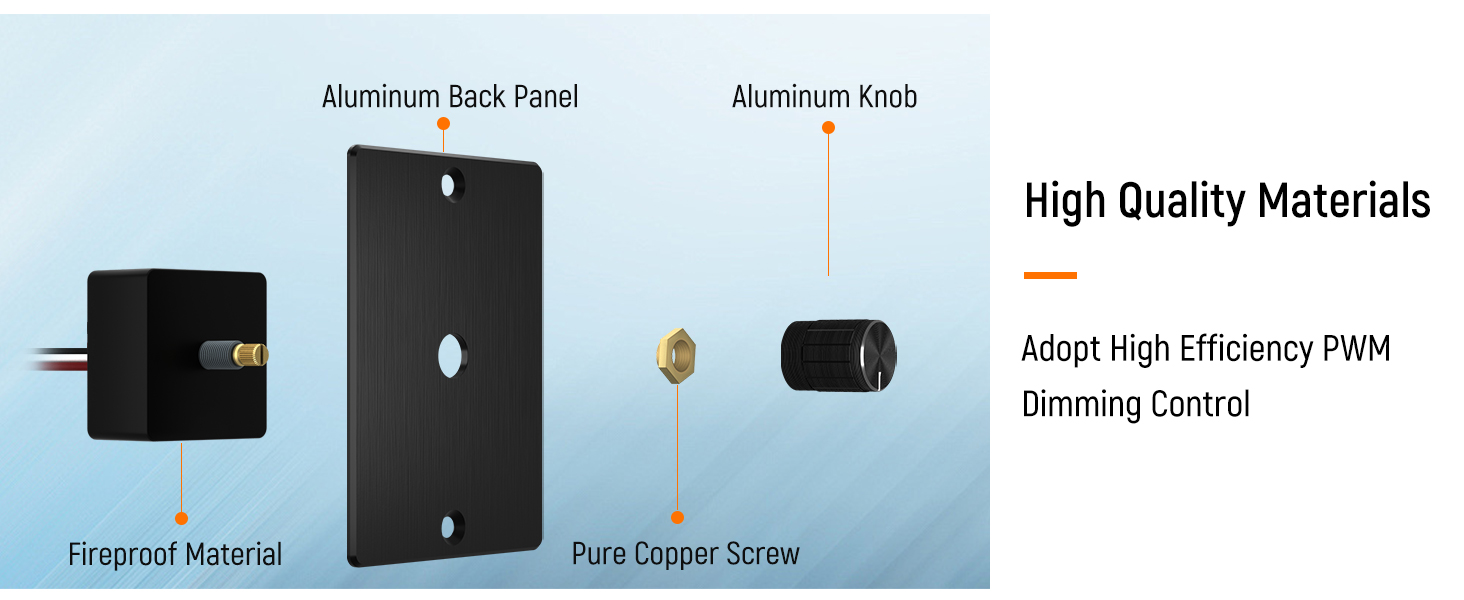

| Material | Aluminum, Copper, Refractory |

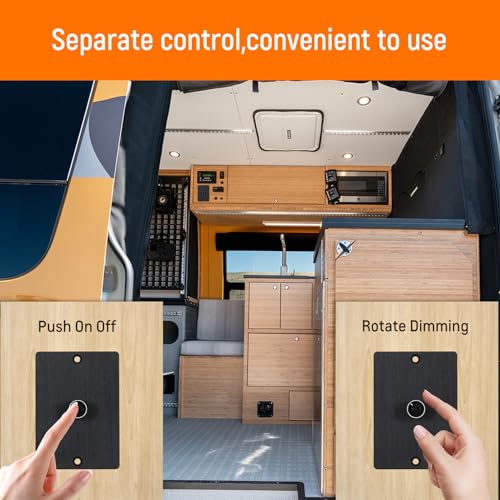

| Switch operation | Rotate – dimming, press – on/off |
| Current rating | 15 Amps |
| Input Voltage | DC 12-24V |
| Dimmer Type | Low Side PWM Type |
| Compatible with | Dimmable LED Lights, Incandescent, Halogen |
| Cutout | 4 cm x 4 cm x 2 cm (depth) |
| Panel | 6.4 cm x 9 cm |
| Note | Do not connect directly to a 220V AC power. |
| Wire length | 16 cm |
