Geekworm X1003 PCIe M.2 NVMe SSD PIP PCIe
Geekworm X1003 PCIe M.2 NVMe SSD PIP PCIe Peripheral Board Top for Raspberry Pi 5 & Active Coole

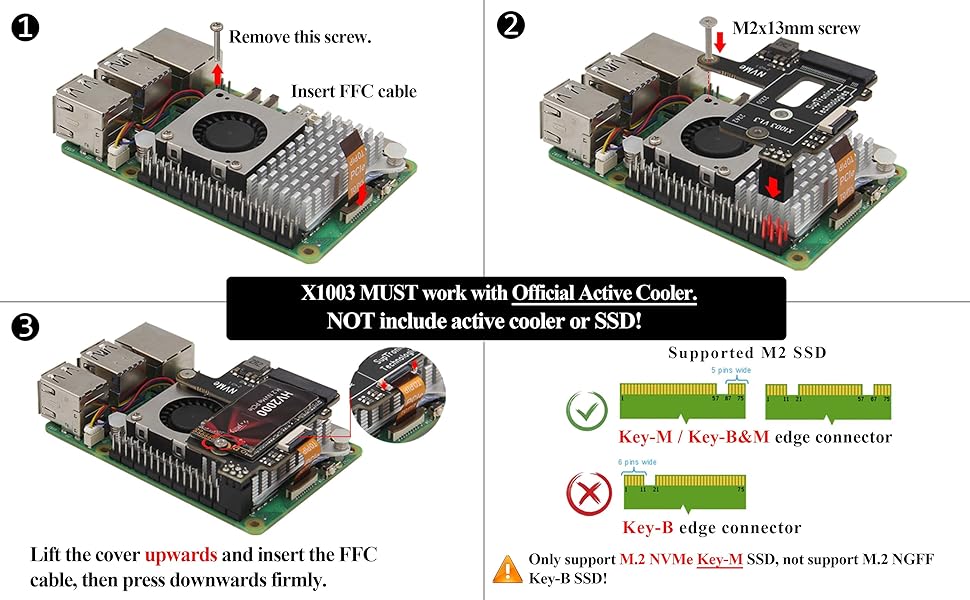

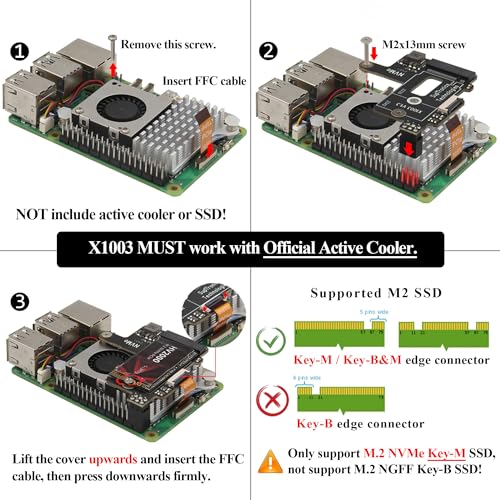

- 【IMPORTANT NOTE】X1003 MUST use with Raspberry Pi 5 official Active Cooler
- 【Compatibility】Raspberry Pi 5 PCIe HAT only for Raspberry Pi 5 8GB / 4GB / 2GB / 1GB, Model: X1003

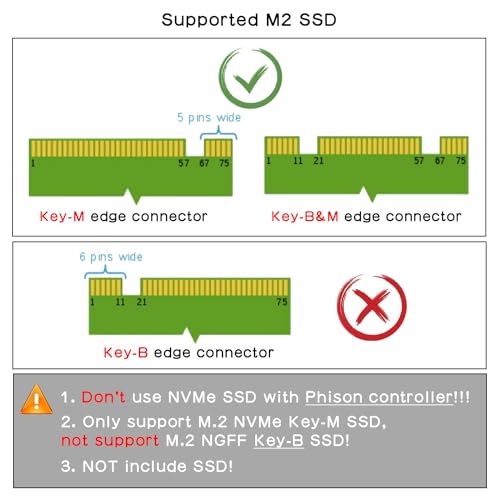

- 【M2 Key-M NVMe SSD Supported】Support M.2 KEY-M NVMe SSD 2230/2242 length installation. (Do not reserve the nut column to fix the 2230 SSD) 【IMPORTANT】DON'T use NVMe SSD with Phison controller, please refer to: https://wiki.geekworm.com/X1003#Important_Notes
- 【How to Power】Can power the X1003 shield directly from the FFC PCIe ribbon (providing maximum 5W of continuous power) Recommend to use Geekworm PD 27W power adapter (ASIN: B0CP8TMMR3)

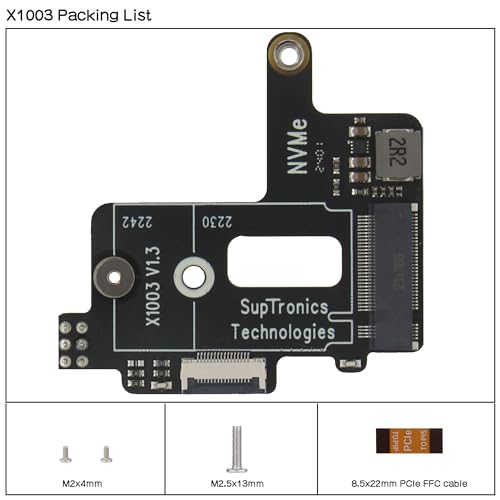

- 【Packing List】1 x X1003 PCIe Peripheral Board, 1x Screws Pack Accessories

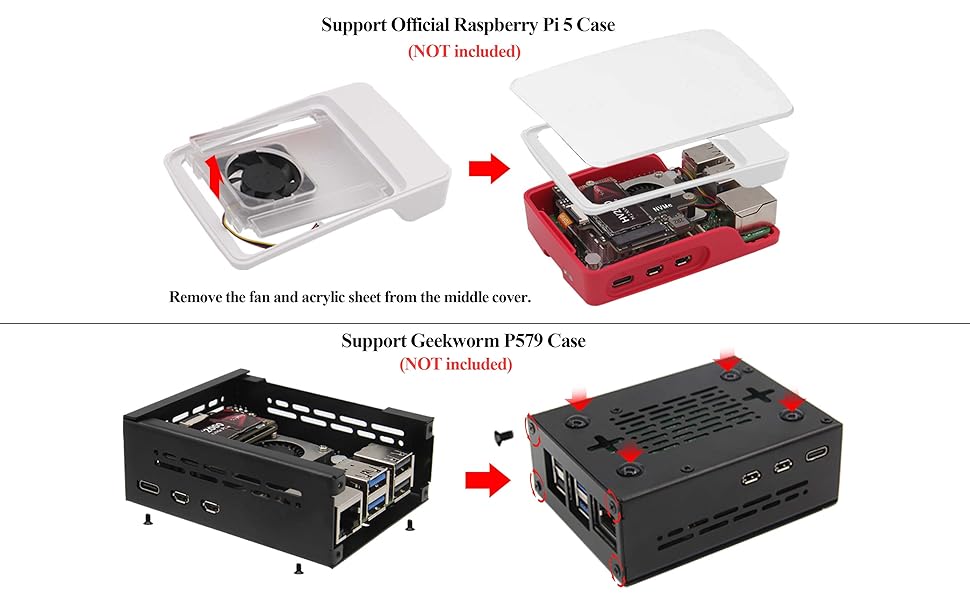

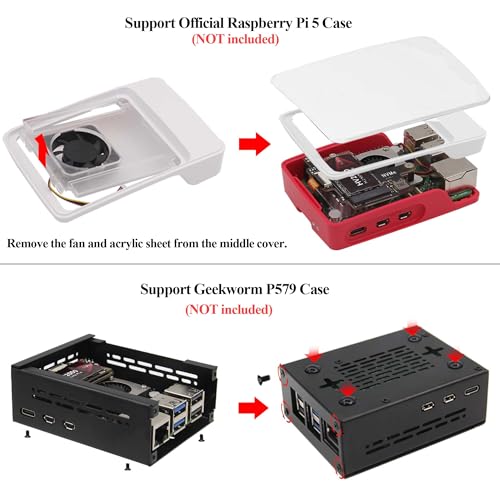

- 【Matching Case(NOT included)】Compatible with Geekworm P579 (ASIN: B0CRB3DT5M) or Raspberry Pi 5 official ABS case
| SKU: | B0CSJZ7NSS |
| Weight: | 11 g |
| Dimensions: | 5.5 x 5.5 x 1.3 cm; 11 Grams |
| Brand: | Geekworm |
| Model: | X1003 |
| Manufacture: | Geekworm |
