Noctua NM-M1-MP83 chromax.black, CPU Cooler
Noctua NM-M1-MP83 chromax.black, CPU Cooler Mounting-Kit for AMD AM5/AM4 and Intel LGA1700/LGA1200 (Black)
- Mounting upgrade kit for Noctua CPU coolers with 83mm mounting pitch (see detailed compatibility information on Noctua website)
- Premium-grade multi-socket mounting-kit for the latest AMD Ryzen (AM5 & AM4) and Intel Core sockets (LGA8151, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156)
- SecuFirm2+ standard with Torx T20 head screws for even better convenience and durability under heavy use, NM-SD1 Torx T20 screwdriver included
- Outstanding reliability, optimal contact pressure and easy, straightforward installation; offset mounting option for AM5 can yield typical reductions in CPU temperature of 1-3°C
- chromax.black version with all-black mounting bars and screws, ideal for chromax.black line heatsinks
| SKU: | B0CN3FNBL9 |
| Weight: | 340 g |
| Dimensions: | 25.7 x 15.5 x 3.2 cm; 340 Grams |
| Model: | NM-M1-MP83 chromax.black |
| Part: | NM-M1-MP83 chromax.black |
| Batteries Required: | No |
| Manufacture: | Noctua |
Product Description
For Noctua coolers with 83mm mounting pitch
The NM-M1-MP83 kit is compatible with a wide range of Noctua CPU coolers that use 83mm mounting pitch, whereas heatsinks with 78mm mounting pitch must use the MP78 version. Please refer to our detailed compatibility information to check which kit is right for your cooler.
Multi-socket support
The NM-M1 sets are Noctua’s most comprehensive multi-socket mounting-kits today: Supporting AMD AM5 and AM4 as well as Intel LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155 and LGA1156, it’s the ultimate kit for a wide range of upgrading or switching scenarios.
Offset mounting option for AMD AM5

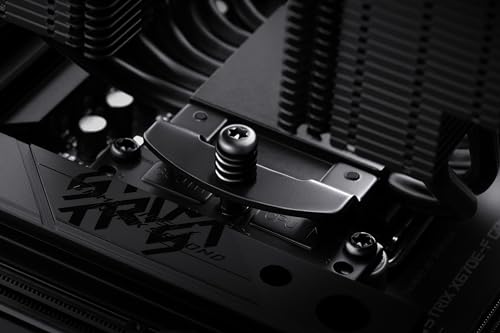

The NM-M1 includes Noctua’s offset mounting bars for AM5 that make it possible to install the cooler shifted towards the south side of the socket by 7mm, thereby achieving better contact pressure right above the Core Complex Die(s). This improved contact exactly at the processor’s hotspot can significantly reduce CPU temperatures with typical improvements in the range of 1-3°C.
NM-SD1 magnetic tip screwdriver
The NM-M1 sets include Noctua’s NM-SD1 Torx T20 head screwdriver that is ideal for all the screws of the kit. Thanks to its magnetic tip and the 150mm long shaft, even remote screws in tightly packed environments such as ITX or HTPC builds are easy to handle without dropping.
| Socket Compatibility: | Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 |

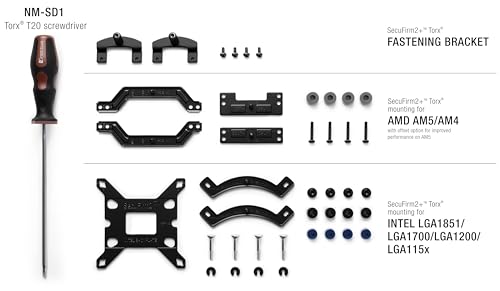

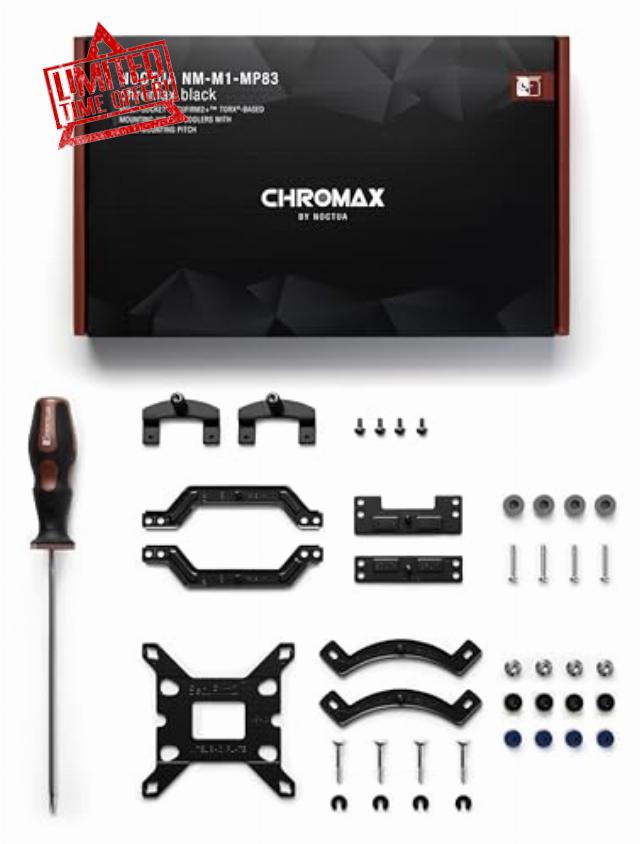

| Scope of Delivery | NM-M1-MP83 chromax.black SecuFirm2+ Torx-based mounting kit, NM-SD1 Torx T20 screwdriver |
| Cooler Compatibility: | NH-D15 (SE-AM4, chromax.black), NH-D15S (chromax.black), NH-D14 (SE2011), NH-D9L, NH-C14, NH-C14S, NH-C12P (SE14), NH-L12, NH-U12, NH-U12F, NH-U12P (SE1366, SE2), NH-U9, NH-U9F, NH-U9B (SE2), NH-L9x65 (SE-AM4), NH-P1 |
| Caution: | Please note that the NM-M1-MP83 is only compatible with heatsinks that have 83mm mounting pitch (see detailed compatibility information) and that the NM-M1-MP78 kit must be used for heatsinks with 78mm mounting pitch. |
 |  |  |  | |
|---|---|---|---|---|
| Socket Compatibility | Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 | Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 | Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 | Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 |
| Cooler Compatibility | 78mm mounting pitch | 83mm mounting pitch | 78mm mounting pitch | 83mm mounting pitch |
| Colour | Silver | Silver | Black | Black |
