Noctua NM-M1-MP78 chromax.black, CPU Cooler

Noctua NM-M1-MP78 chromax.black

Noctua NM-M1-MP78 chromax.black, CPU Cooler Mounting-Kit for AMD AM5/AM4 and Intel LGA1851/LGA1700/LGA1200 (Black)

  • Mounting upgrade kit for Noctua CPU coolers with 78mm mounting pitch (see detailed compatibility information on Noctua website)
  • Premium-grade multi-socket mounting-kit for the latest AMD Ryzen (AM5 & AM4) and Intel Core sockets (LGA8151, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156)
  • SecuFirm2+ standard with Torx T20 head screws for even better convenience and durability under heavy use, NM-SD1 Torx T20 screwdriver included
  • Outstanding reliability, optimal contact pressure and easy, straightforward installation; offset mounting option for AM5 can yield typical reductions in CPU temperature of 1-3°C
  • chromax.black version with all-black mounting bars and screws, ideal for chromax.black line heatsinks

SKU: B0CN3J8D21
Weight: 340 g
Dimensions: 25.7 x 15.5 x 3.2 cm; 340 Grams
Brand: Noctua
Model: NM-M1-MP78 chromax.black
Batteries Included: No
Manufacture: Noctua

Product Description

logoNM-M1-MP78 chromax.blackNM-M1-MP78NM-M1-MP78

For Noctua coolers with 78mm mounting pitch

The NM-M1-MP78 kit is compatible with a wide range of Noctua CPU coolers that use 78mm mounting pitch, whereas heatsinks with 83mm mounting pitch must use the MP83 version. Please refer to our detailed compatibility information to check which kit is right for your cooler.

Multi-socket support

The NM-M1 sets are Noctua’s most comprehensive multi-socket mounting-kits today: Supporting AMD AM5 and AM4 as well as Intel LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155 and LGA1156, it’s the ultimate kit for a wide range of upgrading or switching scenarios.

Offset mounting option for AMD AM5

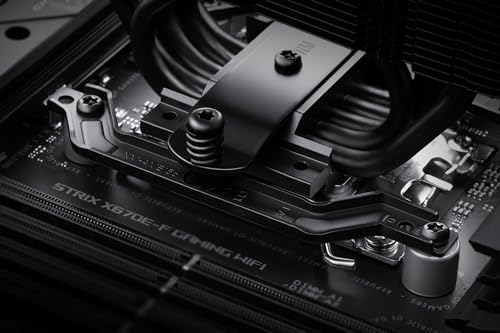

The NM-M1 includes Noctua’s offset mounting bars for AM5 that make it possible to install the cooler shifted towards the south side of the socket by 7mm, thereby achieving better contact pressure right above the Core Complex Die(s). This improved contact exactly at the processor’s hotspot can significantly reduce CPU temperatures with typical improvements in the range of 1-3°C.

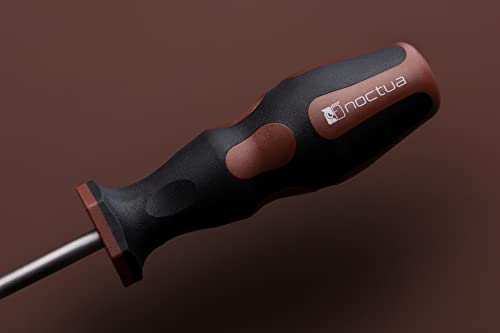

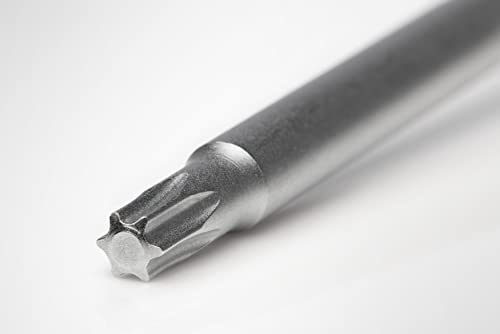

NM-SD1 magnetic tip screwdriver

The NM-M1 sets include Noctua’s NM-SD1 Torx T20 head screwdriver that is ideal for all the screws of the kit. Thanks to its magnetic tip and the 150mm long shaft, even remote screws in tightly packed environments such as ITX or HTPC builds are easy to handle without dropping.

Socket Compatibility: Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4

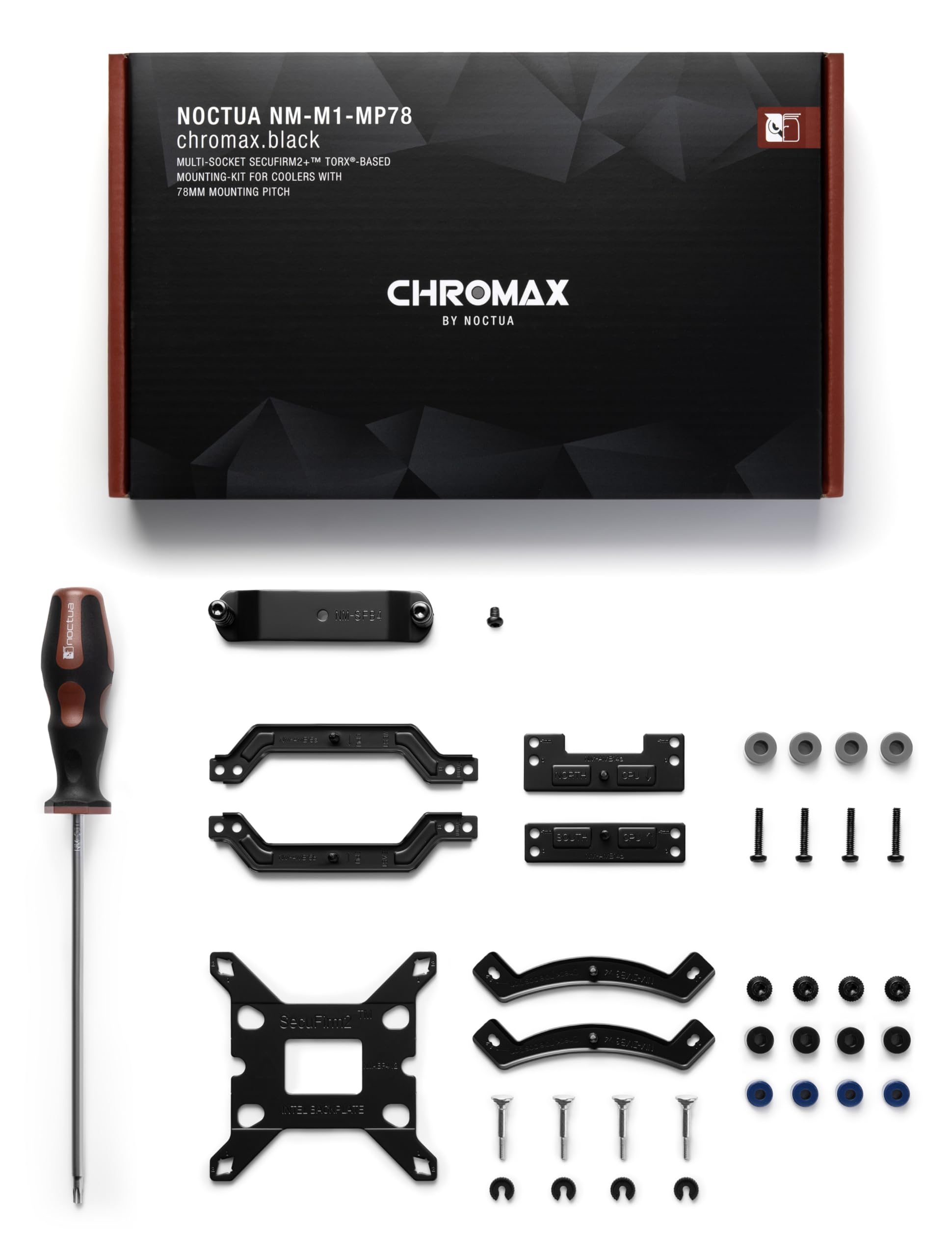

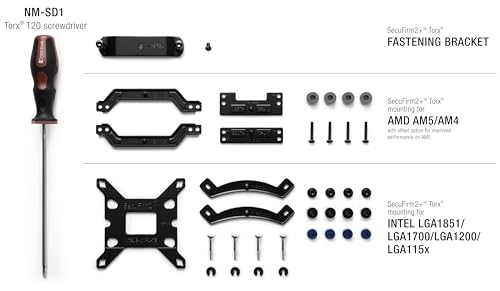

Scope of Delivery NM-M1-MP78 chromax.black SecuFirm2+ Torx-based mounting kit, NM-SD1 Torx T20 screwdriver
Cooler Compatibility: NH-D12L, NH-L12 Ghost S1 Edition, NH-L12S, NH-U9S (chromax.black), NH-U12A (chromax.black), NH-U12S (SE-AM4, chromax.black), NH-U12S redux, NH-U14S
Caution: Please note that the NM-M1-MP78 is only compatible with heatsinks that have 78mm mounting pitch (see detailed compatibility information) and that the NM-M1-MP83 kit must be used for heatsinks with 83mm mounting pitch.

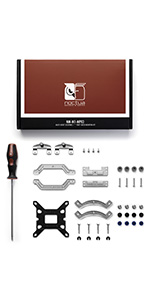

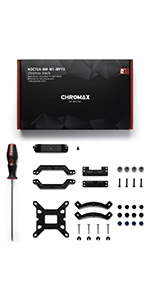

NM-M1-MP78234
Socket Compatibility Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4
Cooler Compatibility 78mm mounting pitch 83mm mounting pitch 78mm mounting pitch 83mm mounting pitch
Colour Silver Silver Black Black
